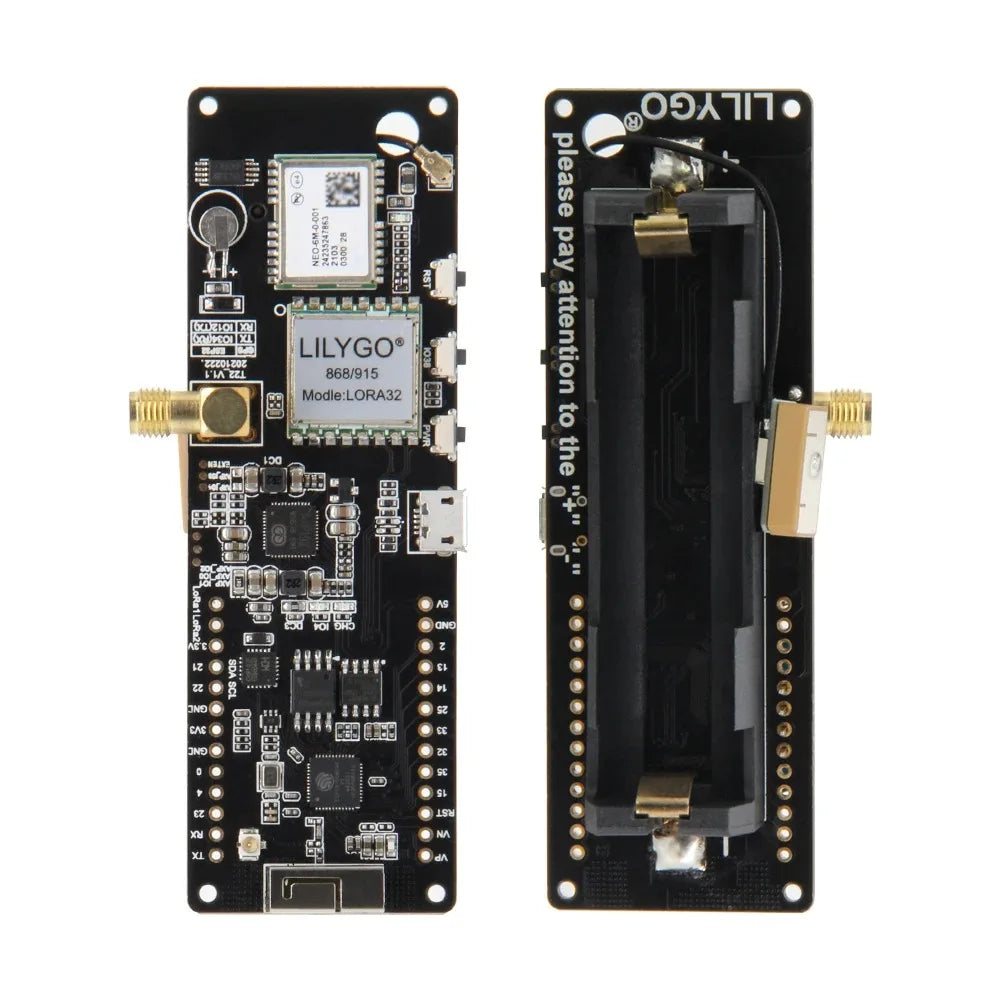

LILYGO® TTGO Meshtastic T-Beam V1.2 ESP32 LoRa Development Board 433MHz 868MHz 915MHz 923MHz WiFi BLE GPS OLED Display AXP2101

$155.80

$155.80 $0.00

Shipping calculated at checkout.

ColorSolder OLED

Ships FromChina Mainland

Version 868MHz 433MHz 923MHz 915MHz

SPECIFICATIONS

Brand Name: NONE

Certification: CE,FCC

Chipset: ESP32

Compatible Audio & Video Equipment Style: Professional Audio Equipment

Cooperating Engineer: Meshtastic

High-concerned chemical: None

Master Chip: ESP32

Origin: Mainland China

Package: Yes

Product Type: 433/866/913/923Mhz

Support 1: for Arduino,Wholesale Module,Custom Made

Support 2: esp32 with display

Support 3: esp32 lora

Wireless: LoRa Module

Wireless Standard: Low-power local area network

Meshtastic T-Beam Notice

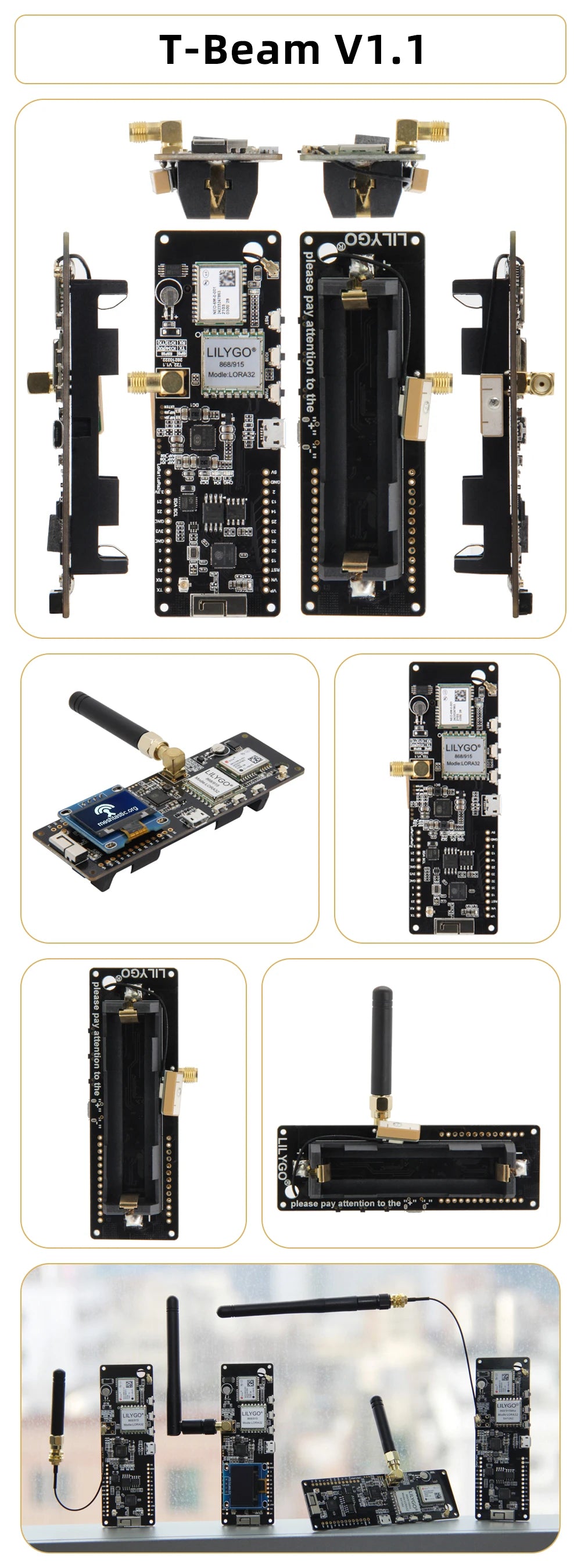

April 13, 2022 Meshtastic T-Beam V1.1
1. Meshtastic T-Beam V1.1 released OLED soldered version on April 13, 2022.
2. This version solder the will OLED on the T-Beam motherboard when it ships to save you time.

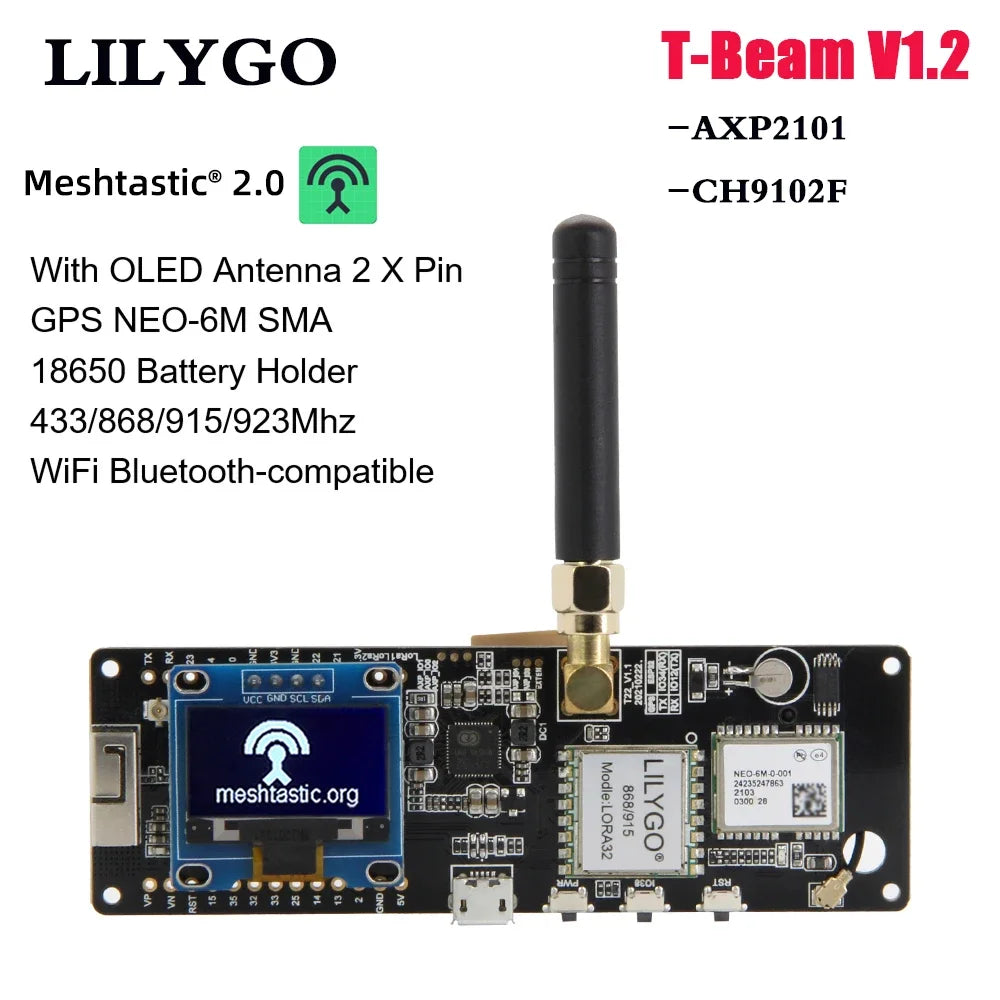

June 28, 2023 Meshtastic T-Beam V1.2

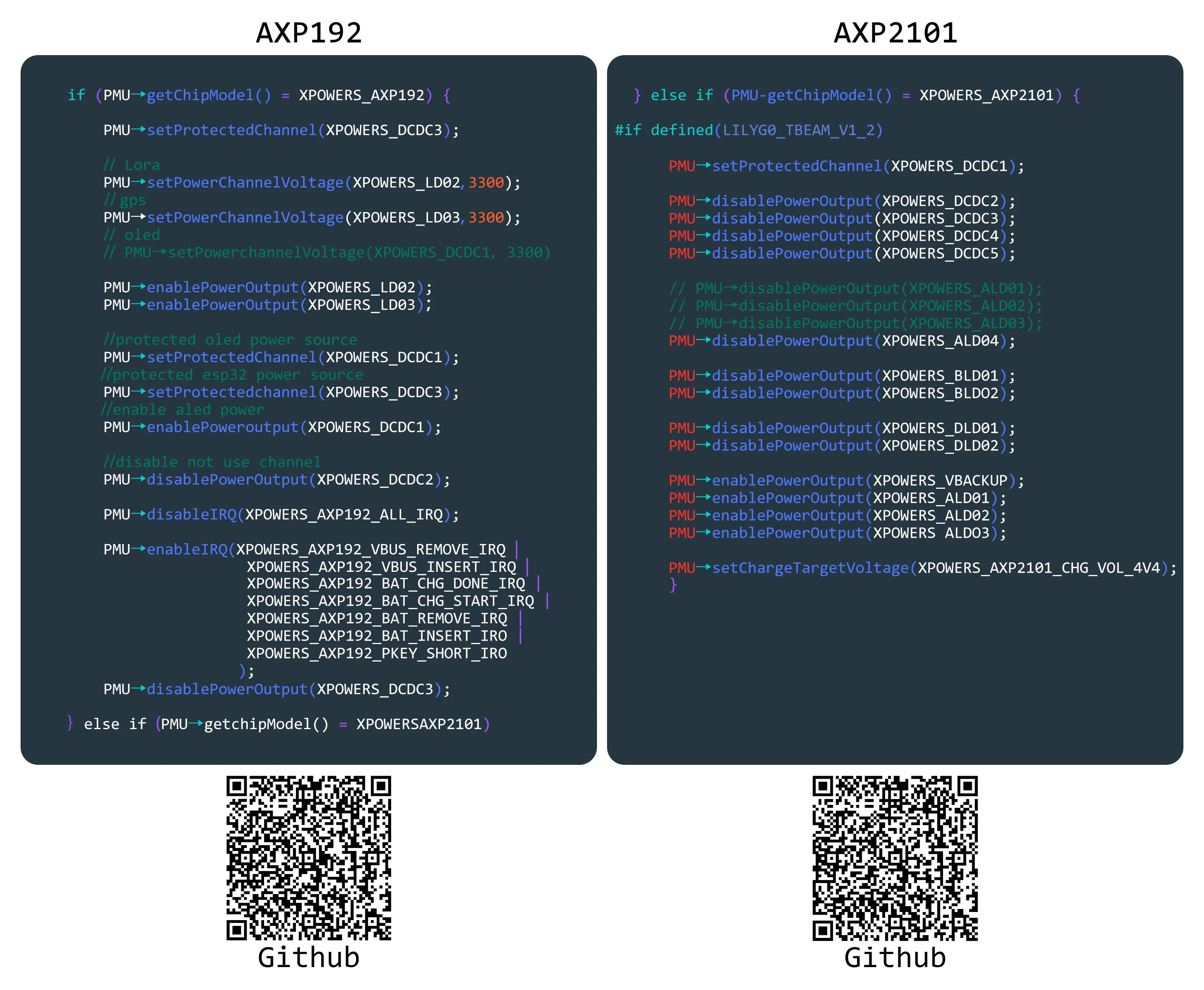

1. Since AXP192 is out of production, it has been replaced by AXP2101 now. The old and new versions will be delivered randomly.

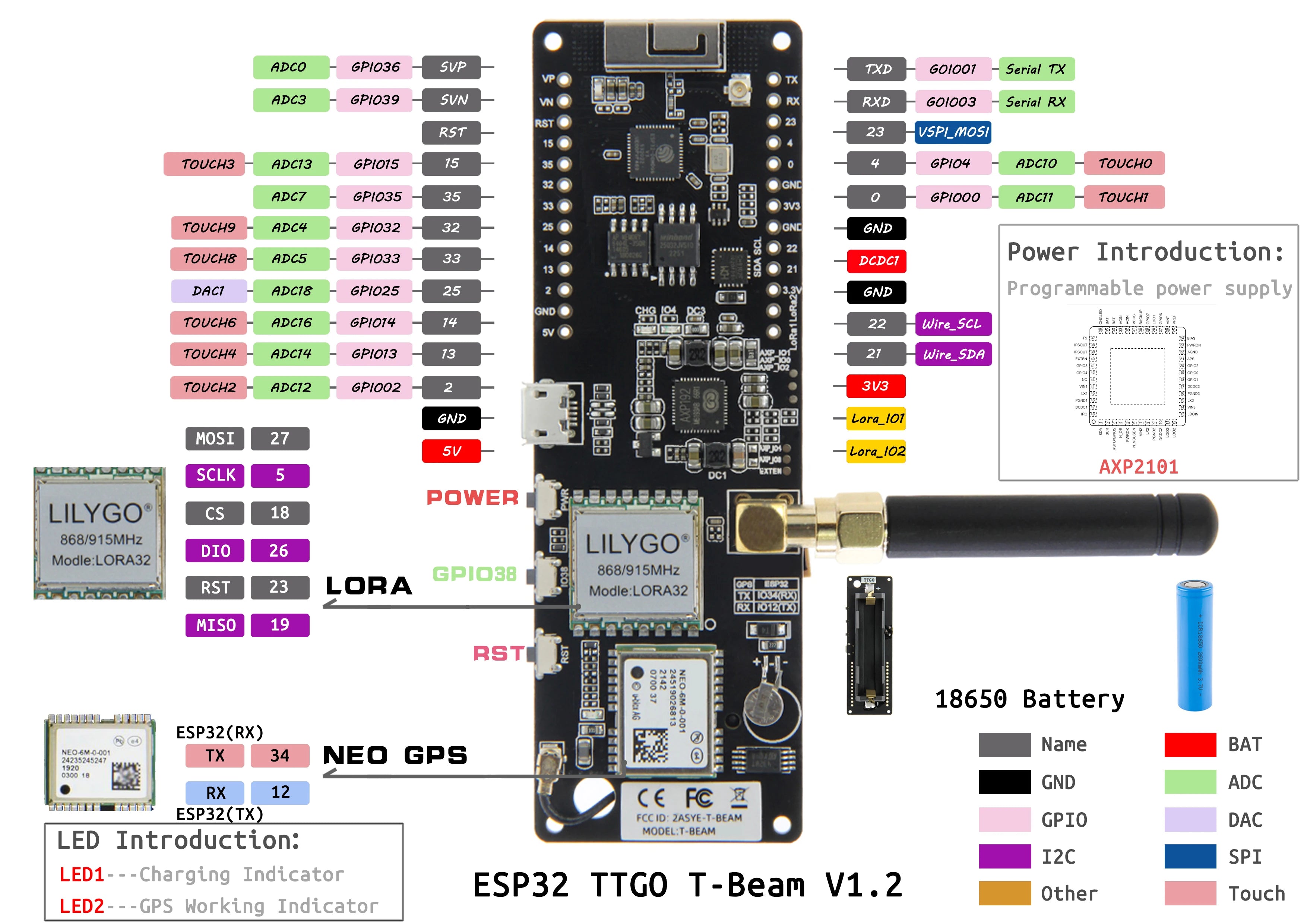

Meshtastic T-Beam
MCU	ESP32
Flash	4MB
Serial Chip	CH9102
PMU	AXP2101
Wireless Protocol	Wi-Fi+Bluetooth 4.2
Onboard Functions	3 Button(Power+IO38+Reset)

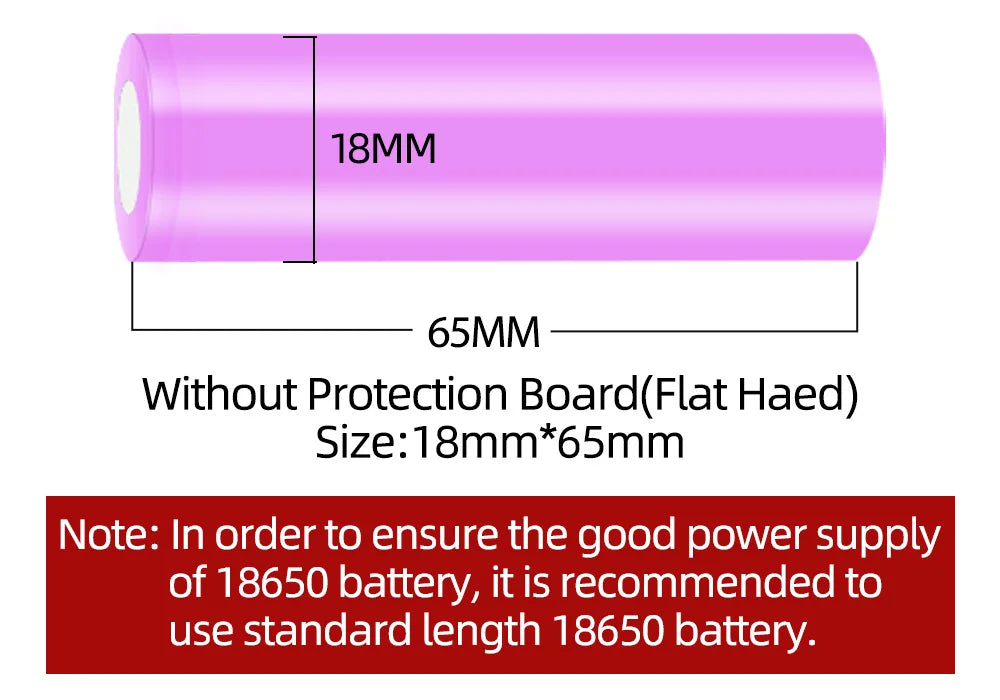

Power Supply Mode	Support USB / 18650 Battery
NEO-6M GPS Modules	Support GPS Protocol
	Onboard RTC Crystal
	Support Interrupt / Wakeup

Long Range Low Power LoRa Transceiver
High Sensitivity	-148 dBm
Transceive Rate	300 kbps
Optional Version	SX1278 / SX1276
Power Amplifiers	+14dBm
TX Current	120mA
RX Current	9.9mA
Programmable Bit	300 kbps
Oscillator	TCXO

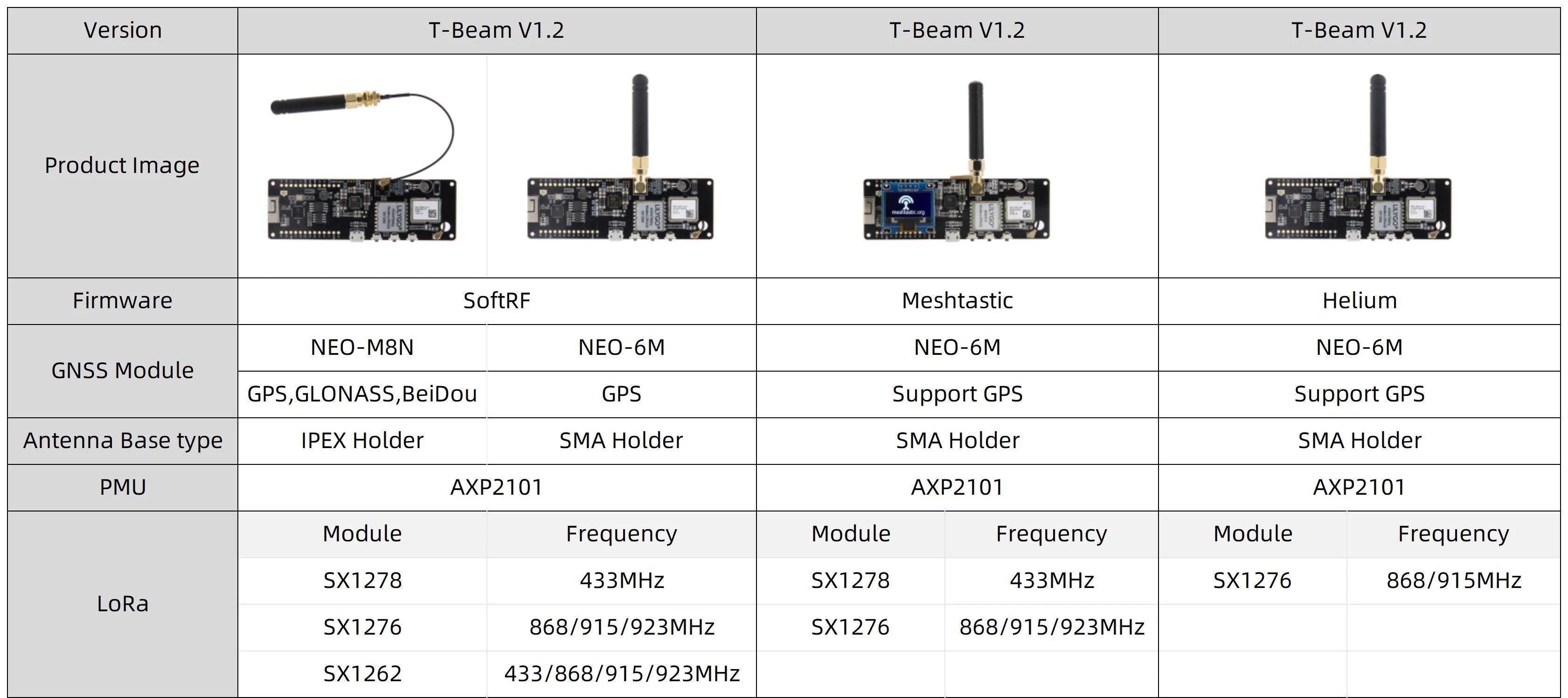

Frequency model comparison

Hardware

SX1278

SX1276

Software

Meshtastic

433MHz Version

Meshtastic

868/915/923 MHz Version

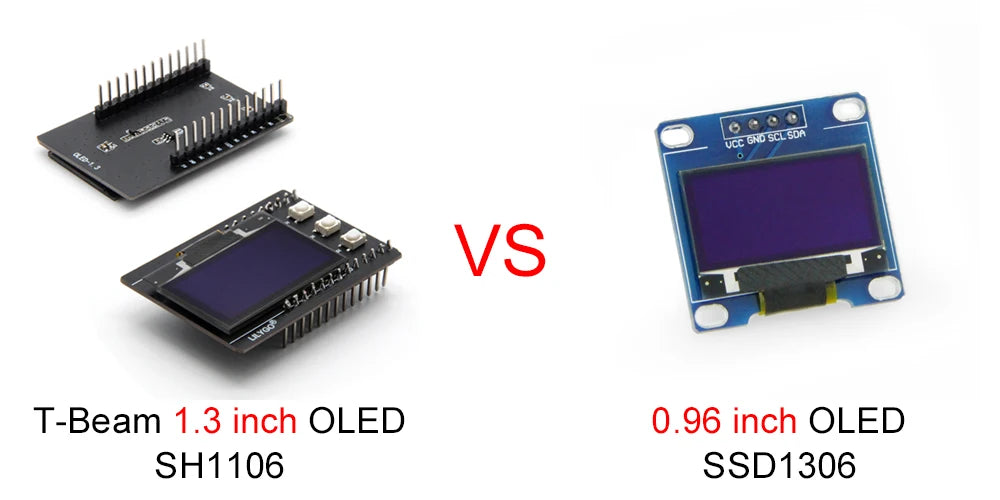

0.96 Inch OLED Parameters
Size	0.96 inch	High resolution	128 * 64
Driver IC	SSD1306	Color	White

More information

https://www.aliexpress.com/item/1005003510957337.html

https://www.aliexpress.com/item/32922106384.html

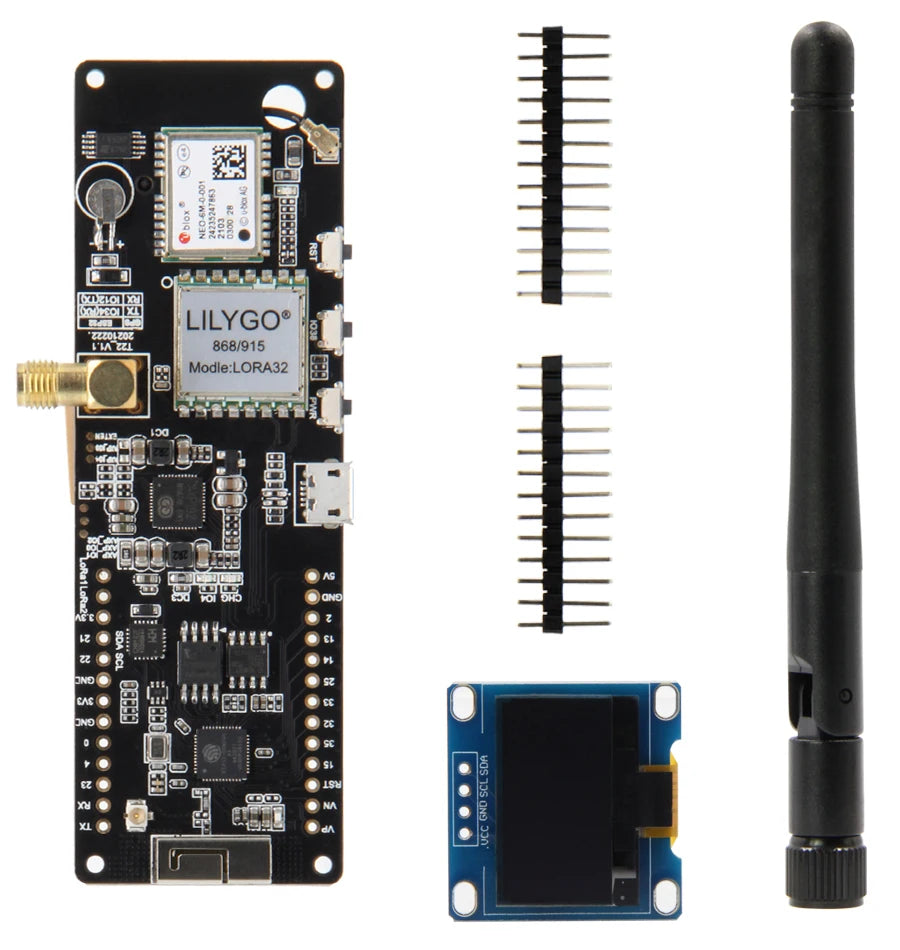

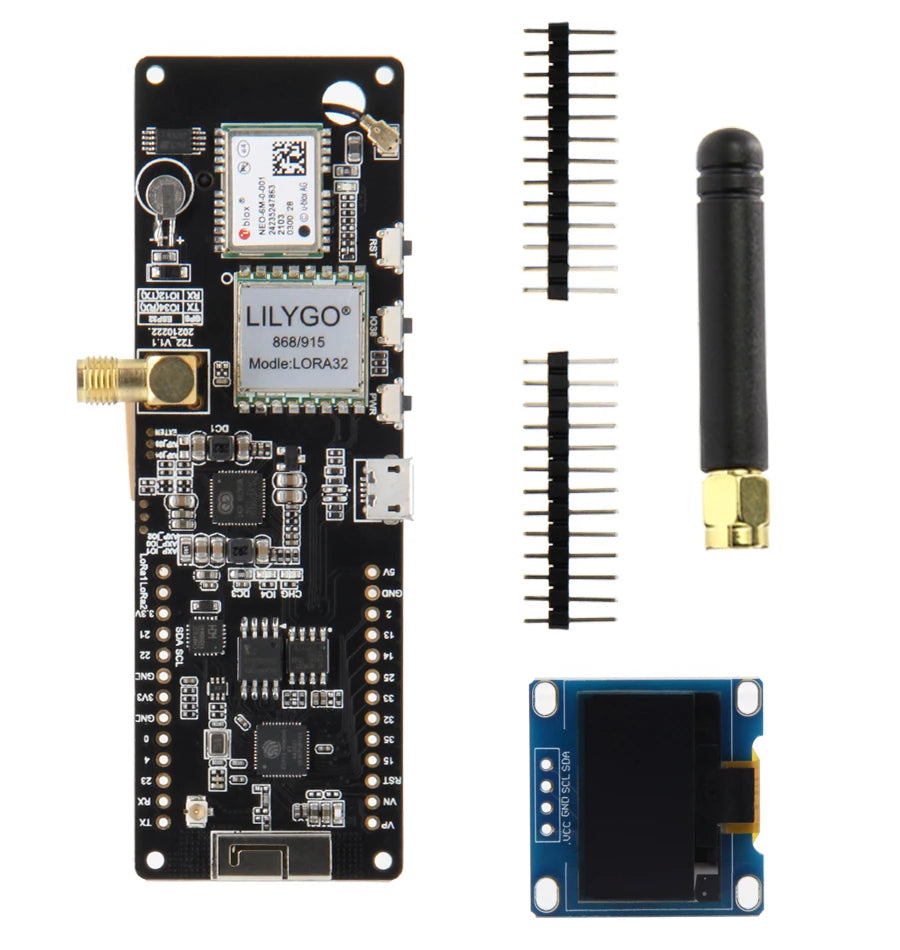

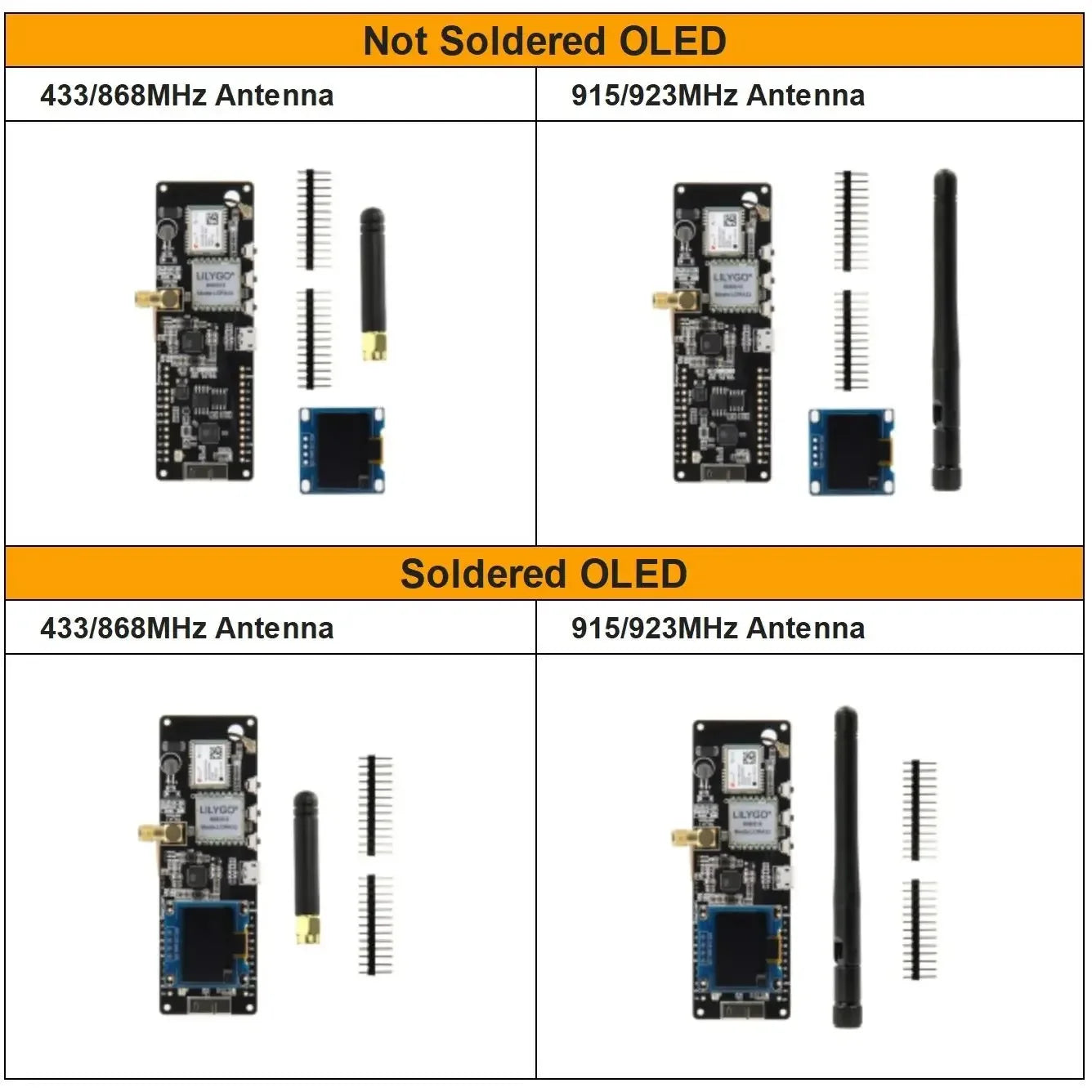

Not Soldered OLED

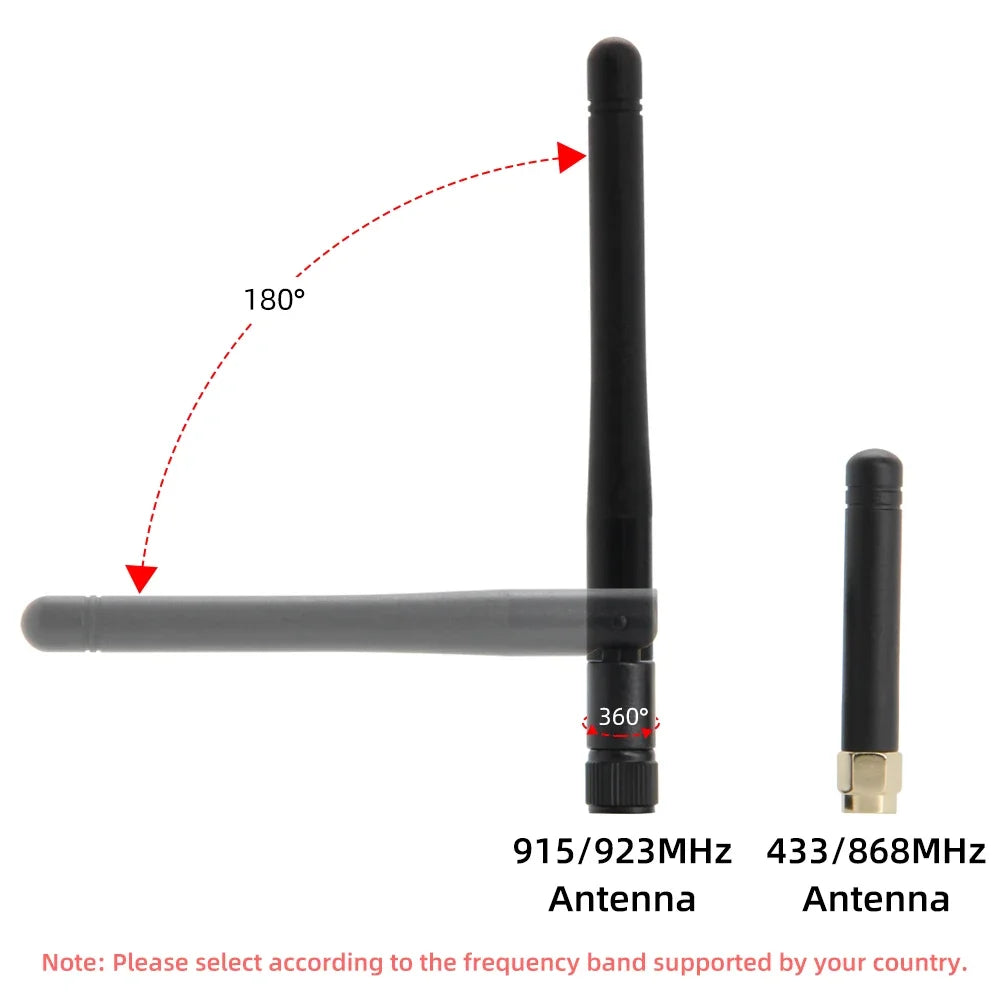

433/868MHz Antenna	915/923MHz Antenna	What's in the box?
		1 X Meshtastic T-Beam
		1 X LoRa Antenna
		1 X 0.96-inch OLED
		2 X Pin
		Note: OLED is not soldered to T-Beam

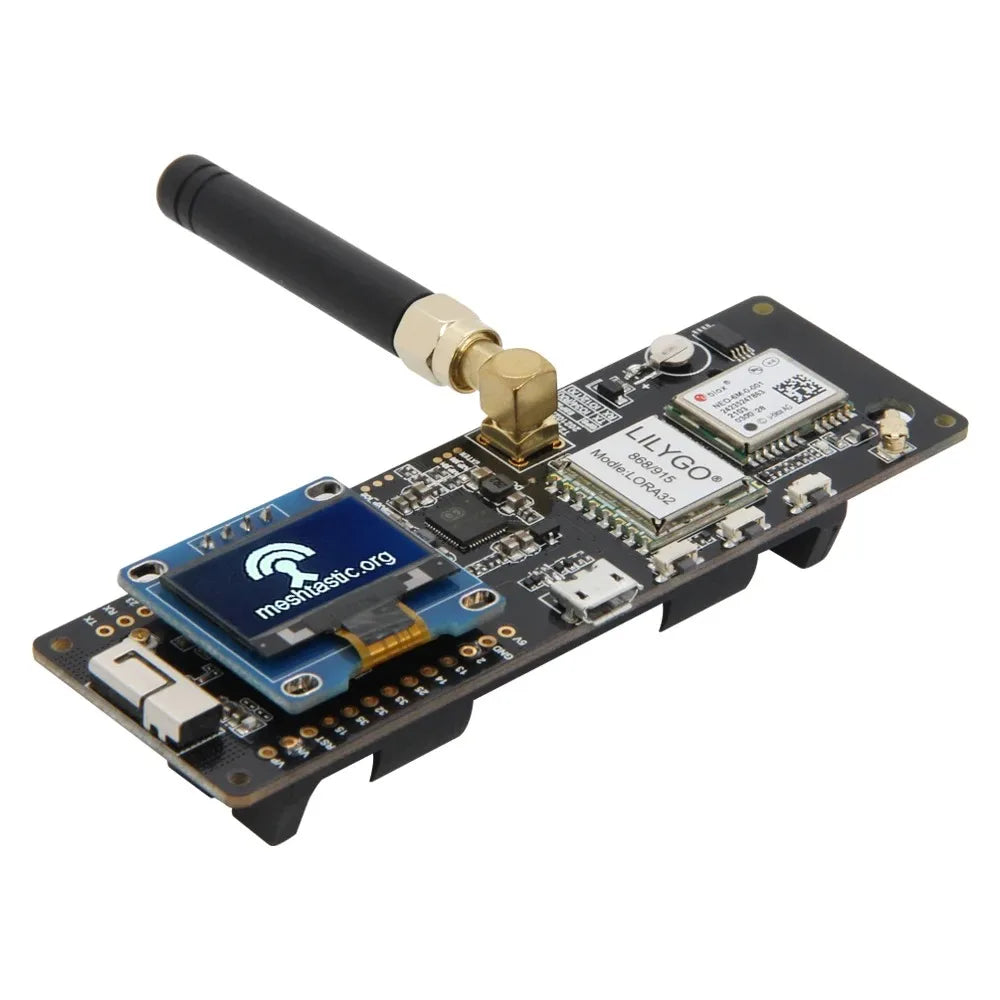

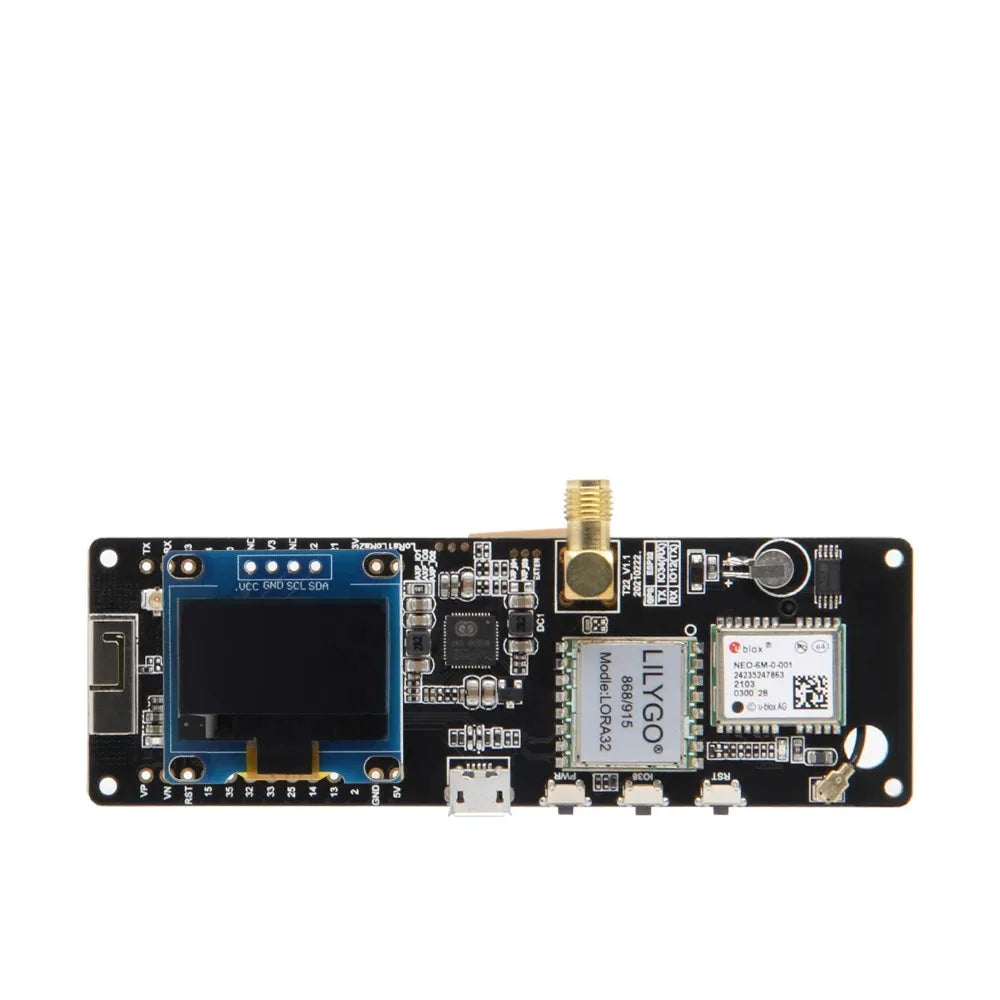

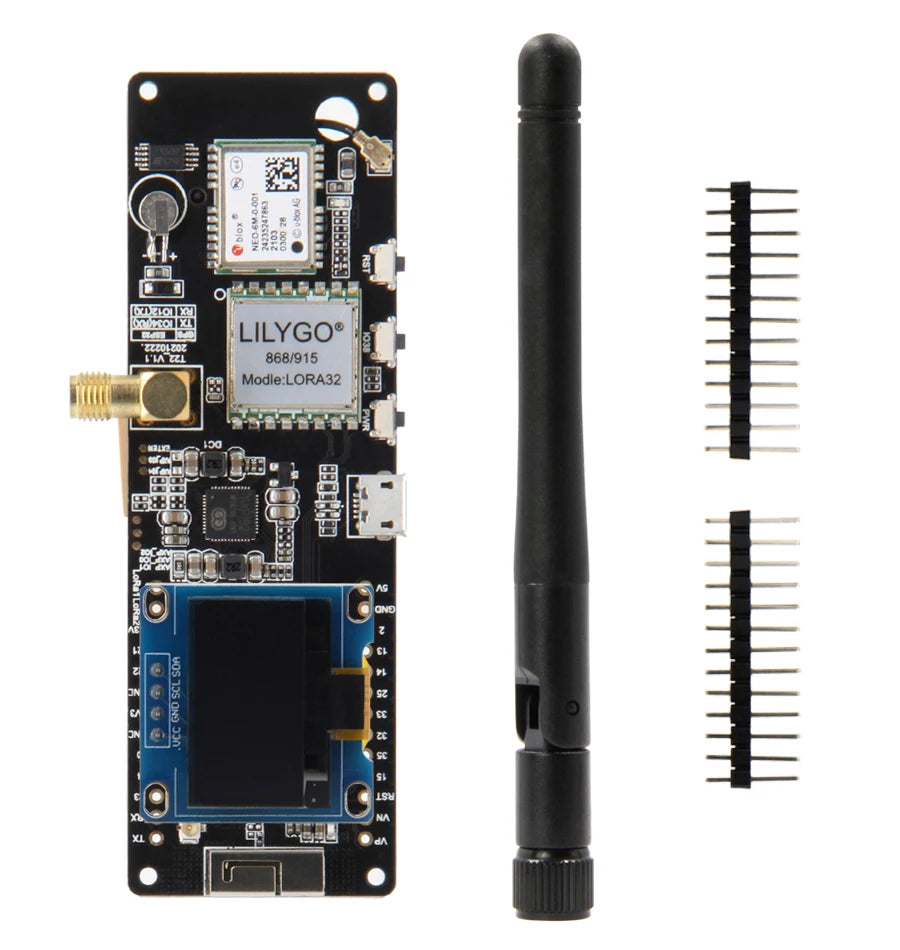

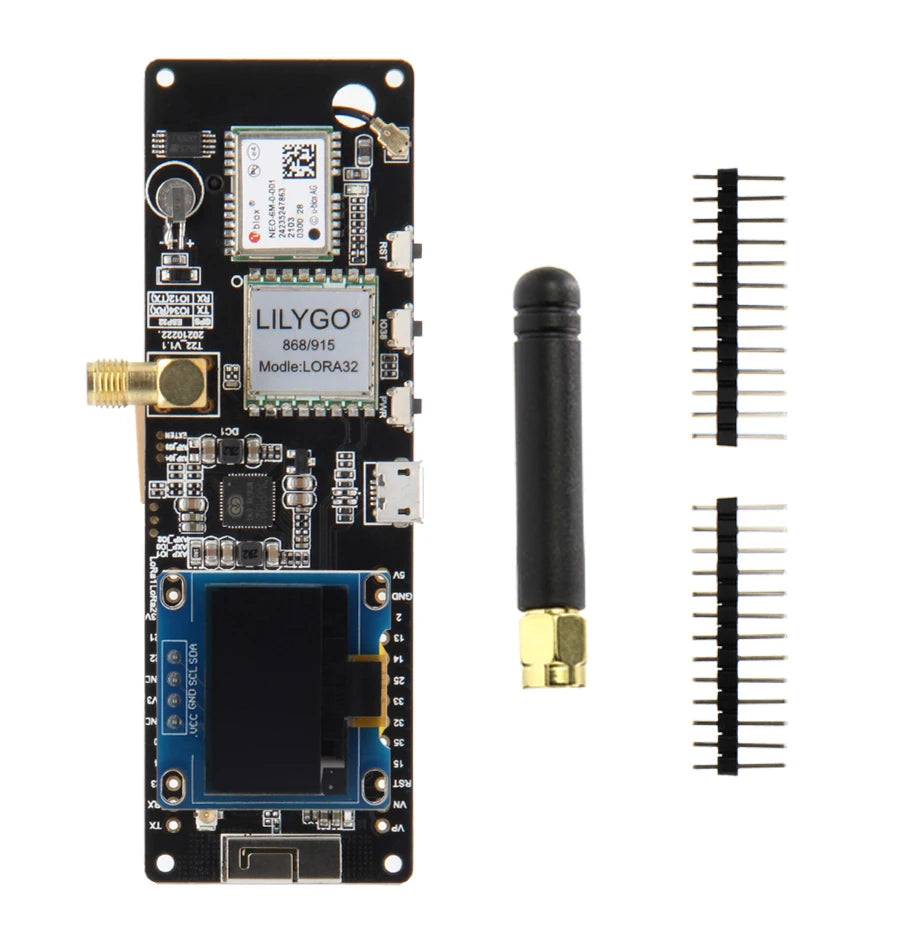

Soldered OLED
433/868MHz Antenna	915/923MHz Antenna	What's in the box?
		1 X Meshtastic T-Beam
		1 X LoRa Antenna
		1 X 0.96-inch OLED (Soldered)
		2 X Pin
		Note: The OLED is soldered to T-Beam
