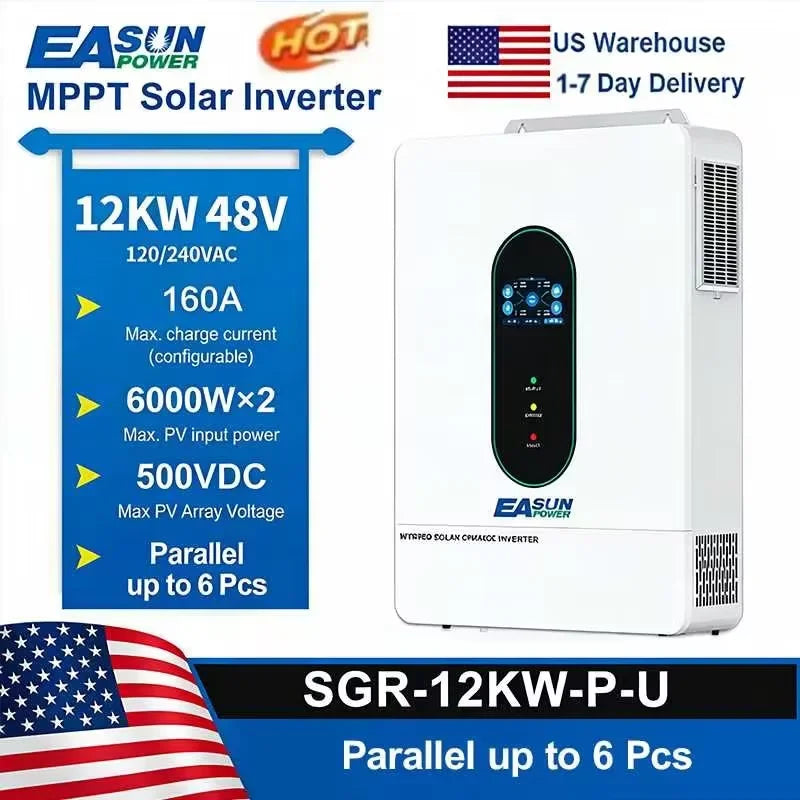

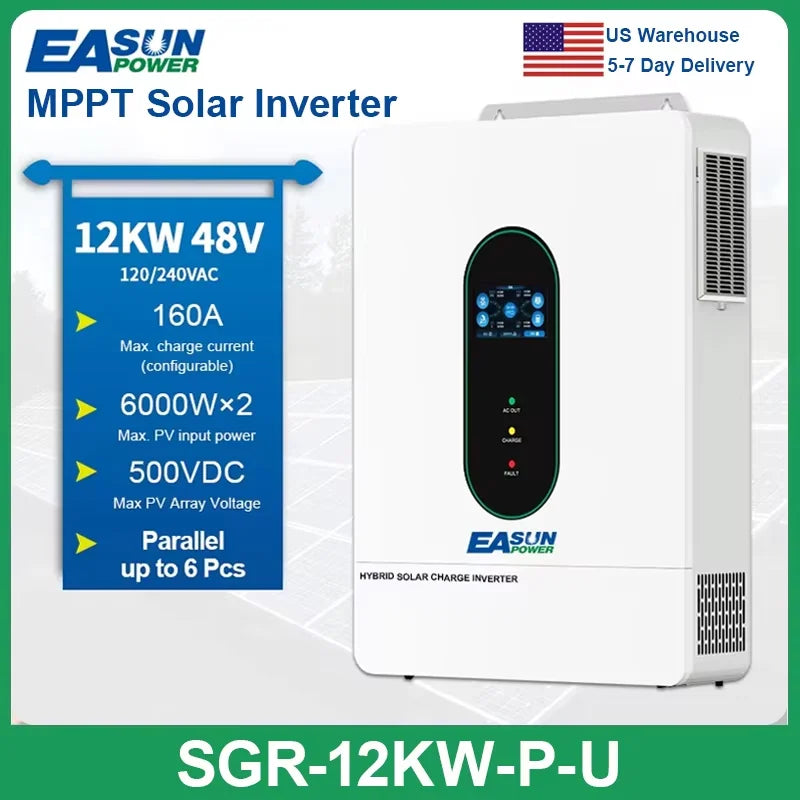

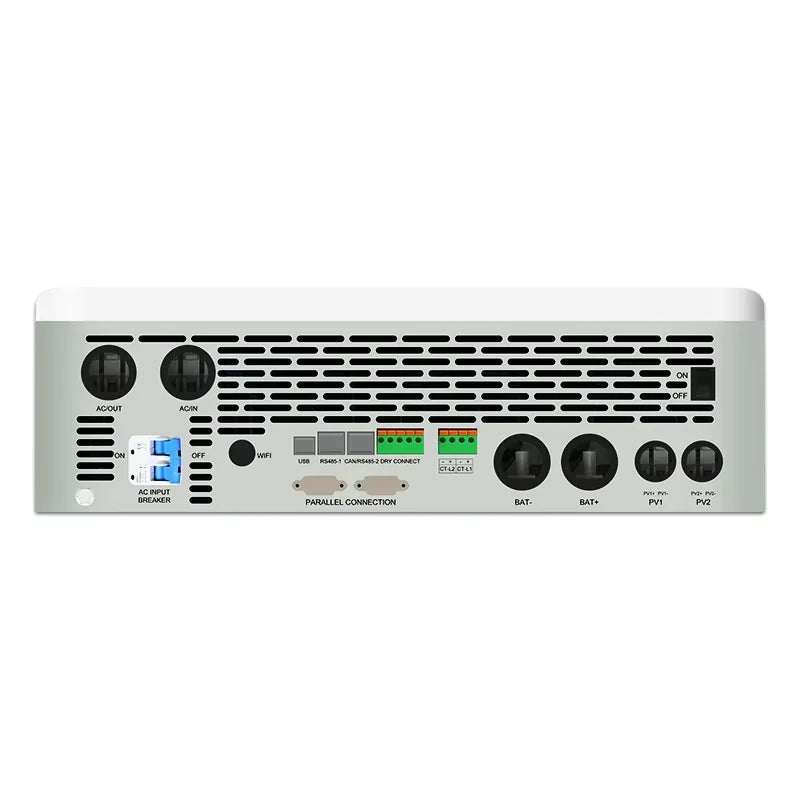

EASUN POWER 120V/220V 12KW hybrid solar inverter 48V photovoltaic split inverter with built-in 200A parallel solar charging con

$650.00

$650.00 $0.00

Shipping calculated at checkout.

SPECIFICATIONS

Brand Name: EASUN POWER

Certification: CE

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: None

Is Smart Device: Yes

Model Number: 4KW-12KW

Origin: Mainland China

Weight: 8.5-27.500KG

is_customized: Yes

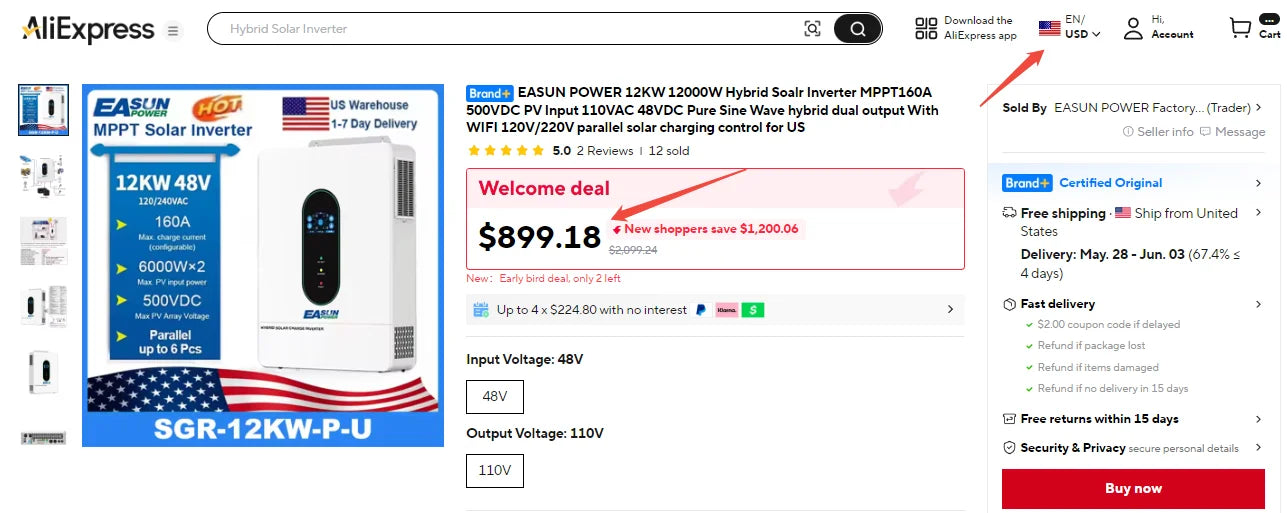

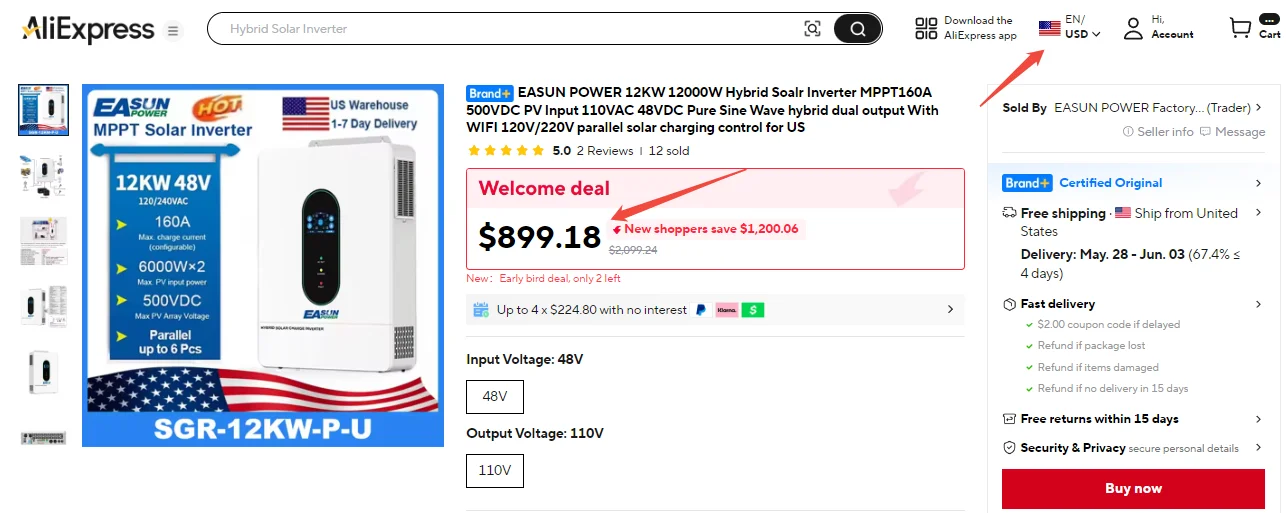

Promotion Link SGR-12KW-U-W-C-E $899.18

Discounts are time limited, first come, first served

https://www.aliexpress.com/item/1005012353253548.html

EASUN Hybrid Soalr Inverter 12KW MPPT 160A 500VDC PV Input 110VAC 48VDC 12000W Parallel Pure Sine Wave dual output with WIFI

EASUN POWER Hybrid Soalr Inverter 4KW MPPT 140A 350VDC PV Input 110VAC 24VDC 4000W Pure Sine Wave hybrid

Description:

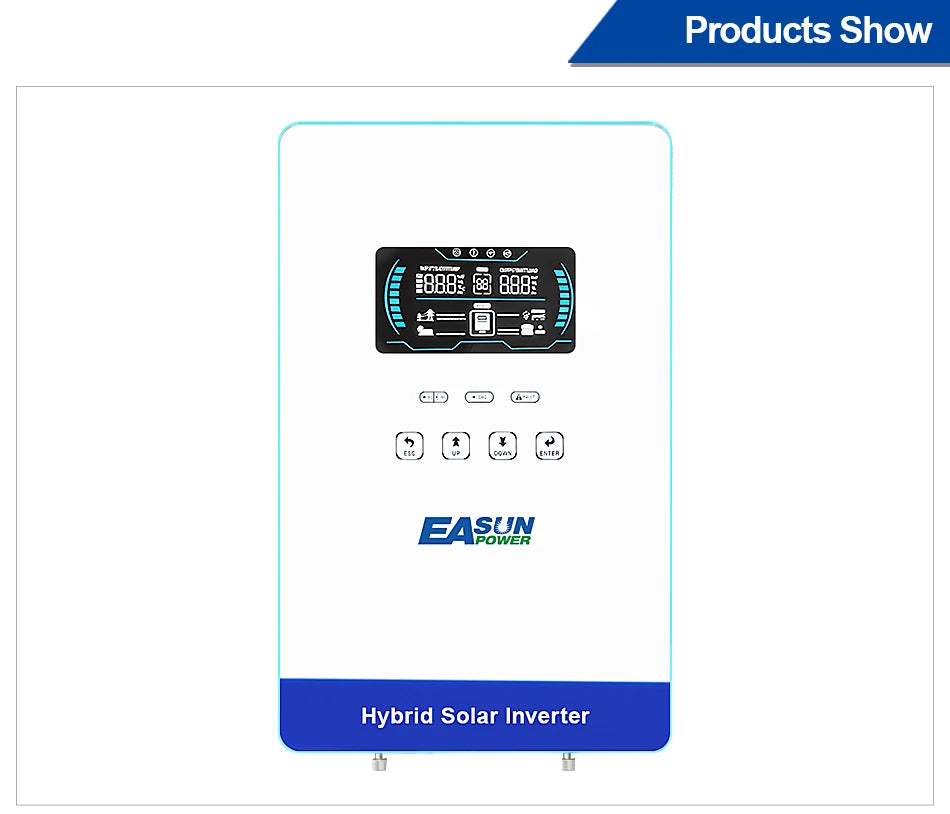

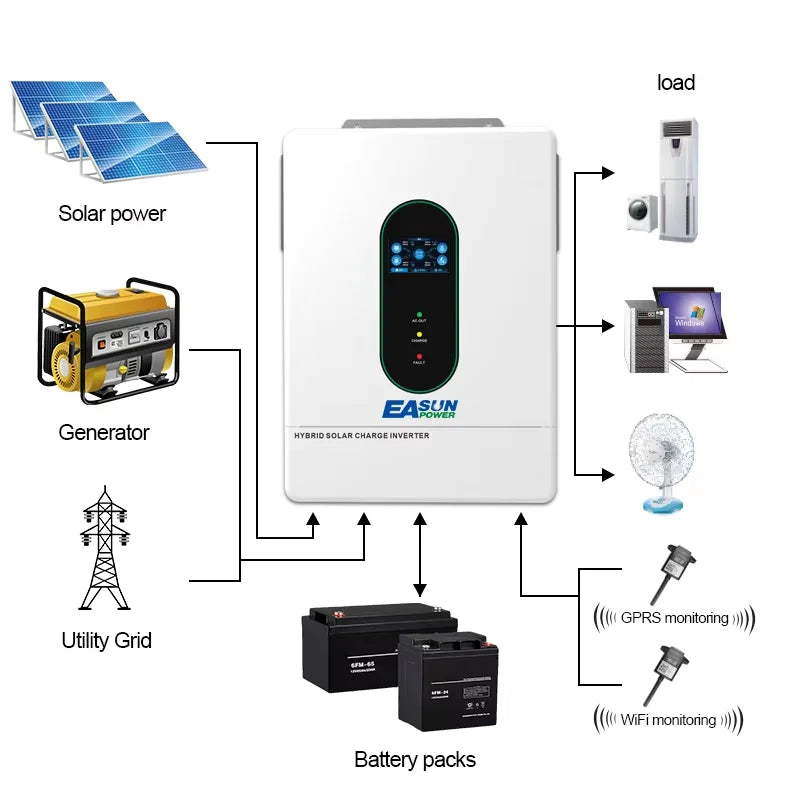

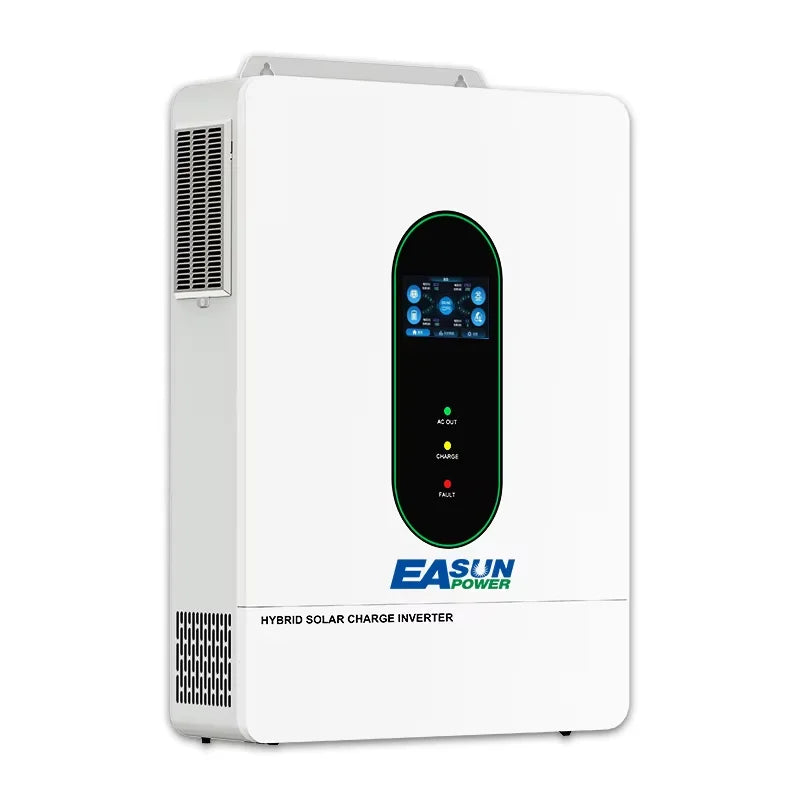

EASUN POWER 12KW 48V Solar Hybrid Inverter 120V/220V Pure Sine Wave Power Inverter Split Phase 200A/220A Charger System

1.Pure sine wave

2.Output 120VAC (L1/N,L2/N) / 240VAC (L1/L2)

3.Power factor 1.0

4.Photovoltaic input voltage 90-500Vdc

5.Built-in MPPT 220A

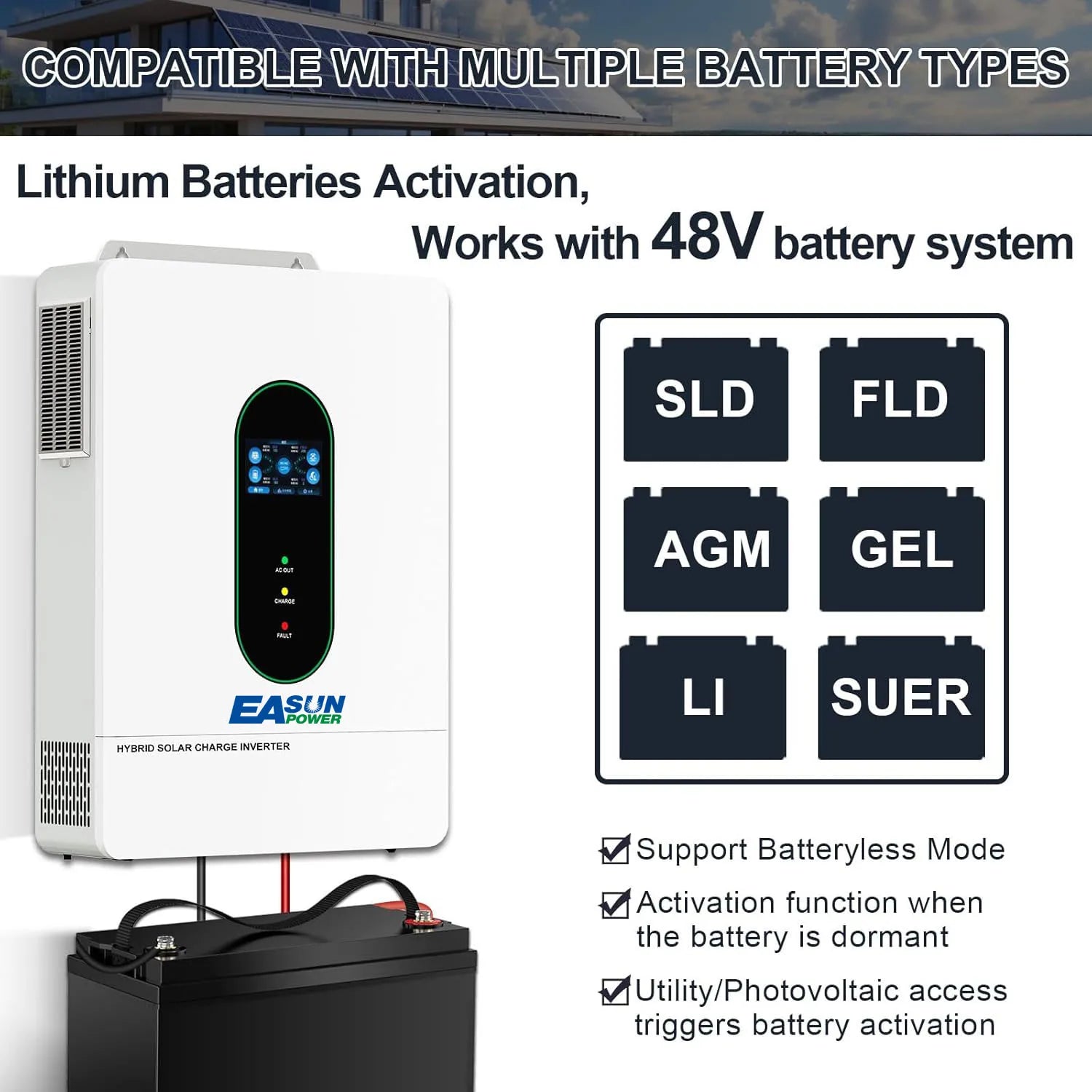

6.Works compatible with LifePO4 batteries

7.Dual PV input

8.WiFi remote monitoring

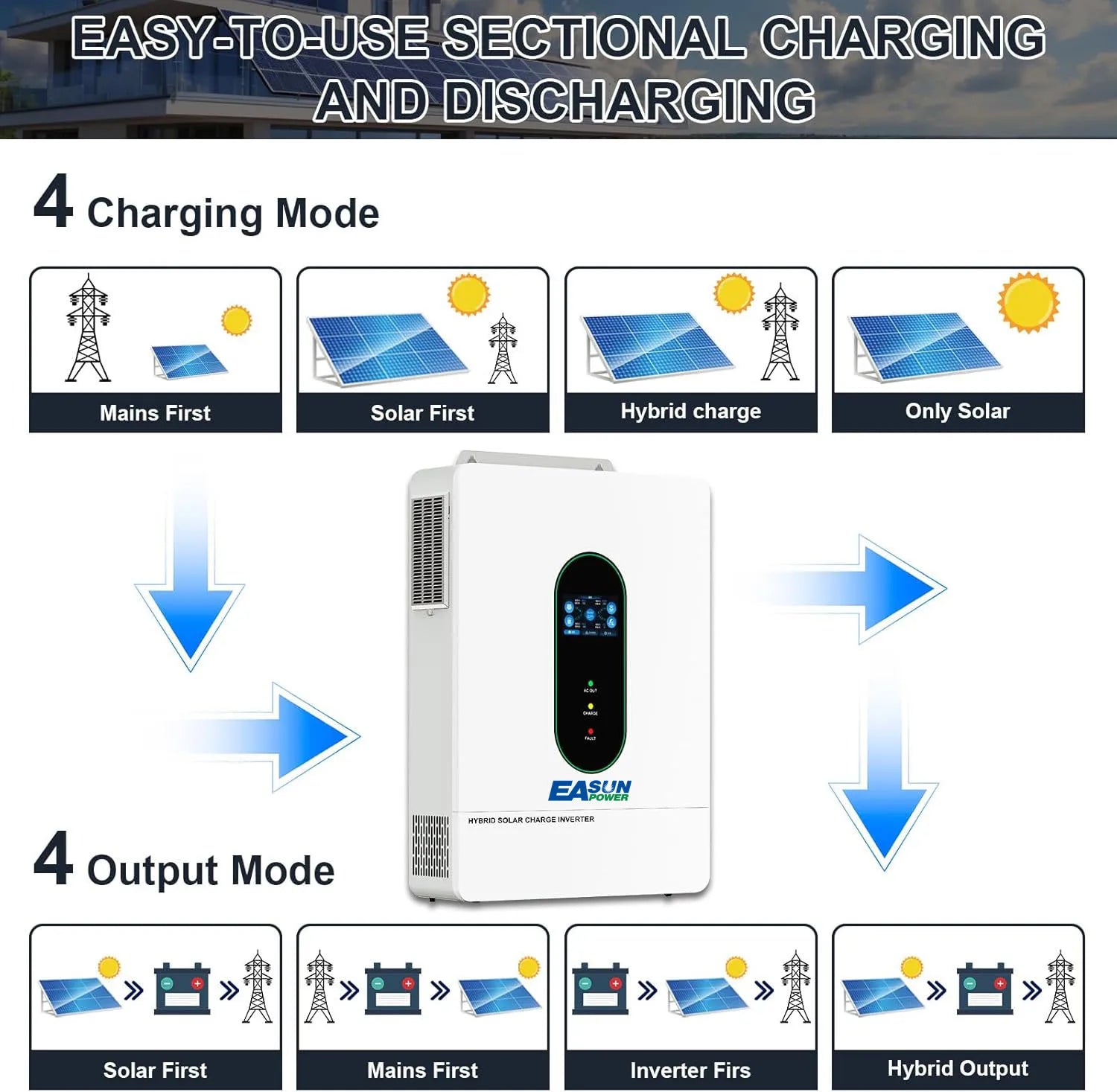

9.Supports multiple output priorities to optimize battery performance and extend life cycle

10.Supports RS485 communication protocol with dry node interface

11.Parallel function (optional)

12.Supports working without battery

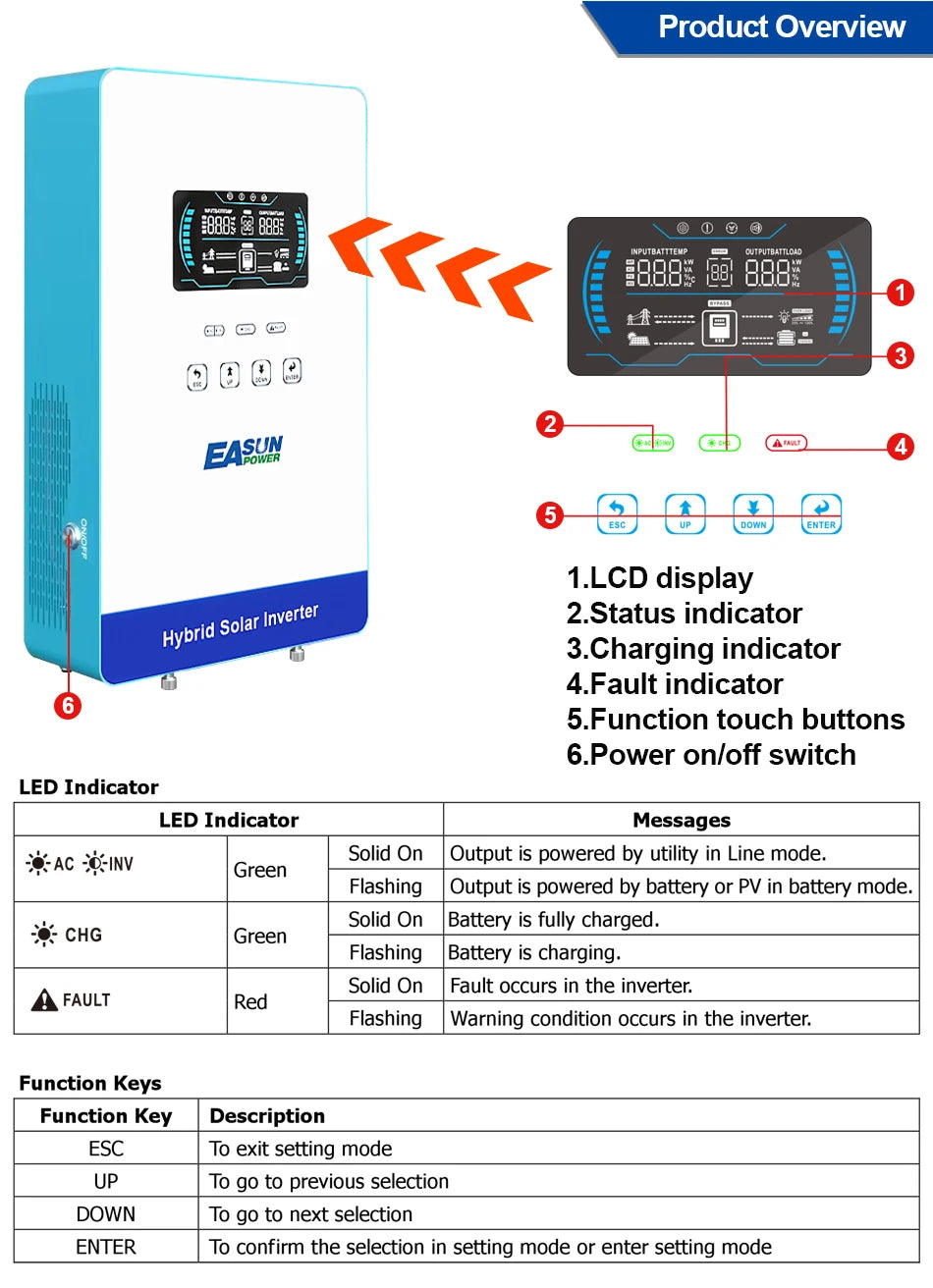

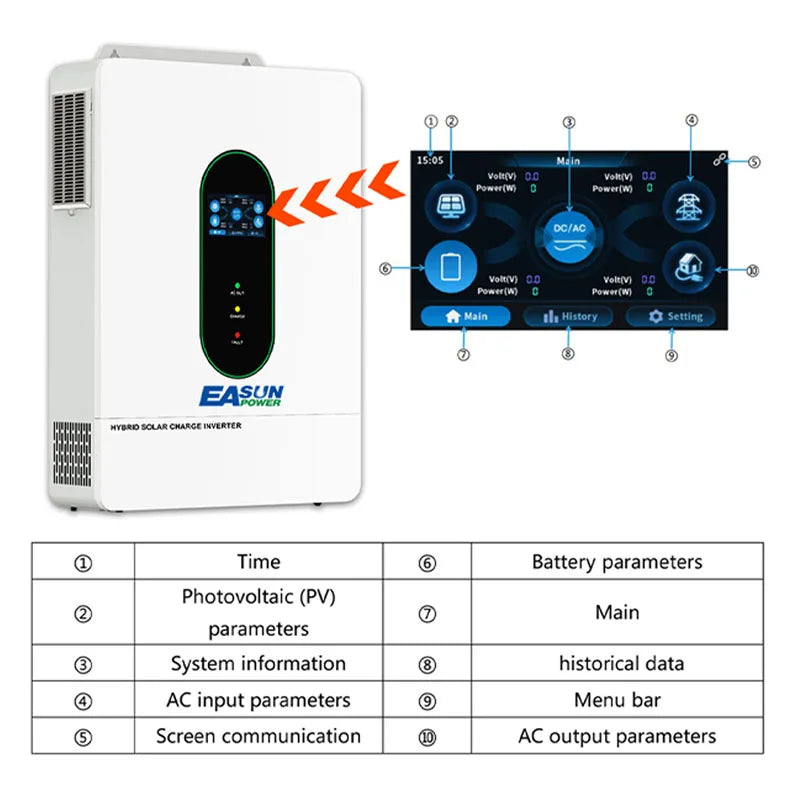

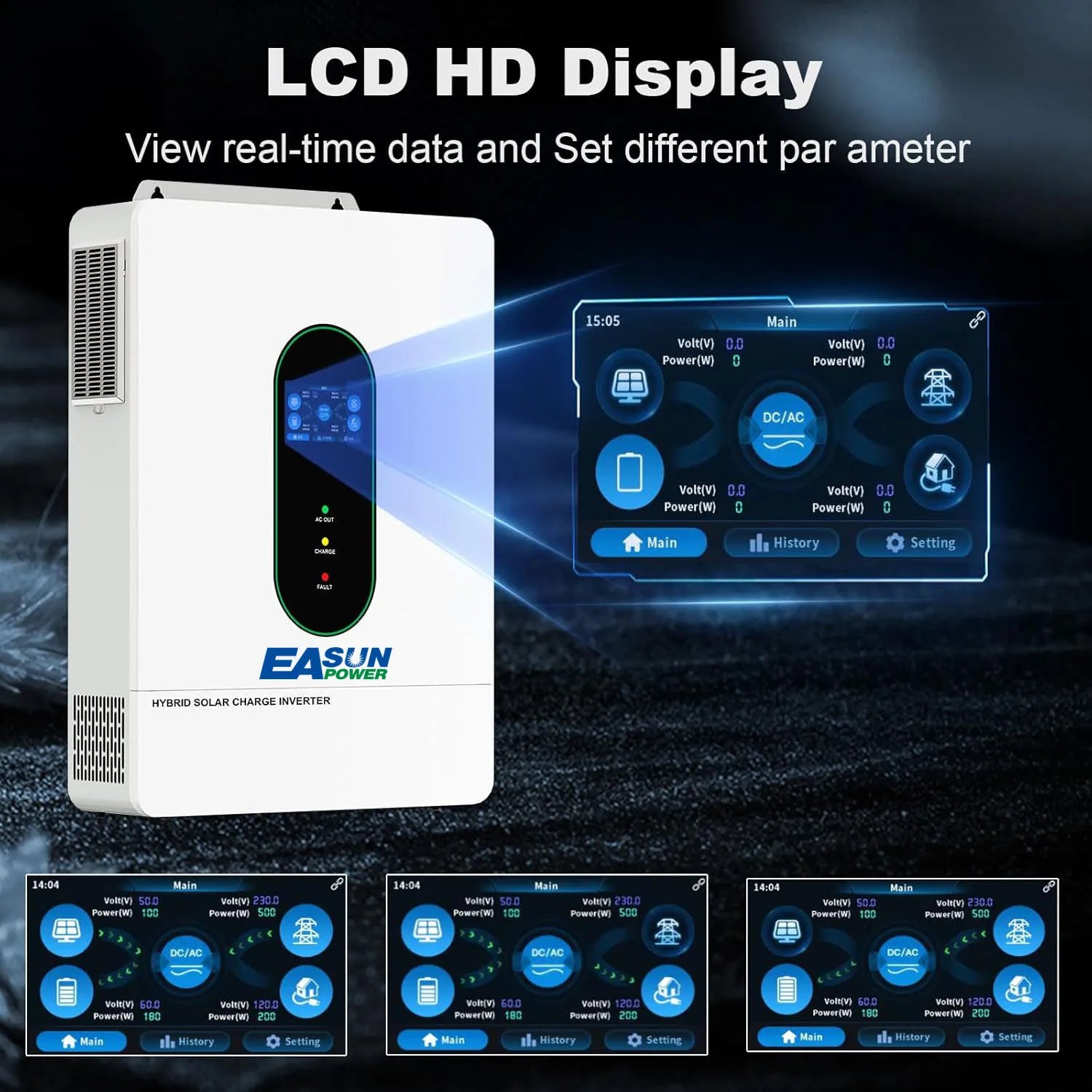

13.LCD touch display

14.Supports feeding power to the grid function

15.Bring PC software to set all functions of the inverter

16.Dual PV input and output

17.The maximum charging current of the mains power is 160A, but the maximum charging current of the battery is 220A

Models

SGR-12KW

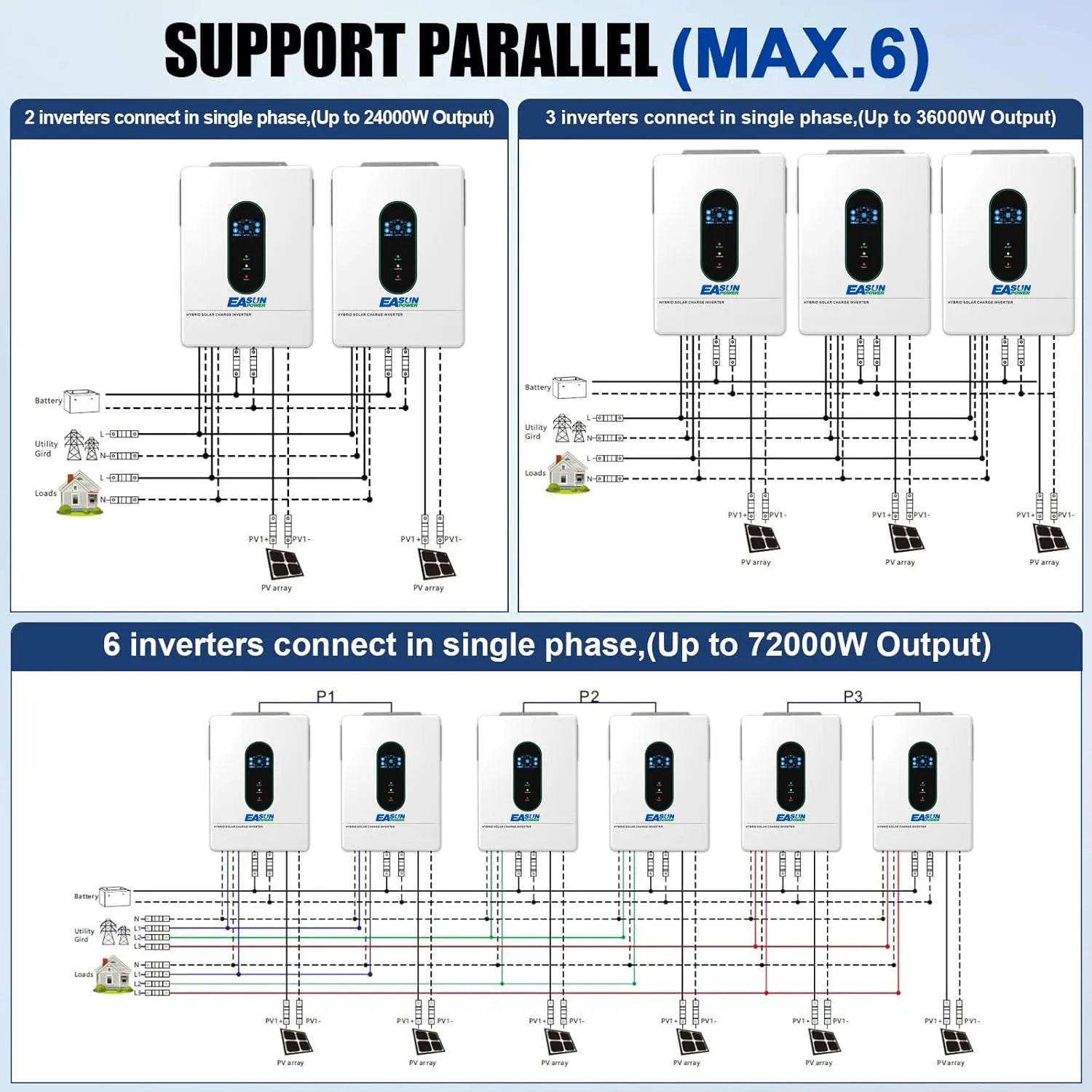

Parallel mode

Permitted parallel number

1~6

AC mode

Rated input
voltage

120(L1/N, L2/N)/240Vac(L1/L2)

Input phase
voltage range

(85Vac~140Vac)±2%

Frequency

50Hz/60Hz (Auto detection)

Frequency
Range

47±0.3Hz~55±0.3Hz (50Hz)
57±0.3Hz~65±0.3Hz (60Hz)

Overload/
short circuit
protection

Circuit breaker

Efficiency

>95%

Conversion
time (bypass
and inverter)

10ms (typical)

AC reverse
protection

Yes

Maximum
bypass phase
overload
current

2pole, 60A/60A(L1/L2)

Inverter mode

Output
voltage
waveform

Pure sine wave

Rated output
power (VA)

Split phase: 12000

Rated output
voltage (Vac)

120Vac (L1/N, L2/N)/240Vac(L1/L2)

Output
voltage error

±5%

Maximum
Efficiency

>91%

Overload
protection

(105% < load <110%) ±5%: report error and turn off the output after 5 minutes;
(110% < load < 125%) ± 5%: report error and turn off the output after 10 seconds;
Load >125% ±5%: report error and turn off the output after 5 seconds;

Output short
circuit
protection

Can protect, after continuous short circuit for 1 second

AC charging

Battery type

Lead acid or lithium battery

Maximum
charge
current(can
be set)

160A

Charge
voltage range

40-58.6Vdc

PV charging

Number of
MPPT groups

2

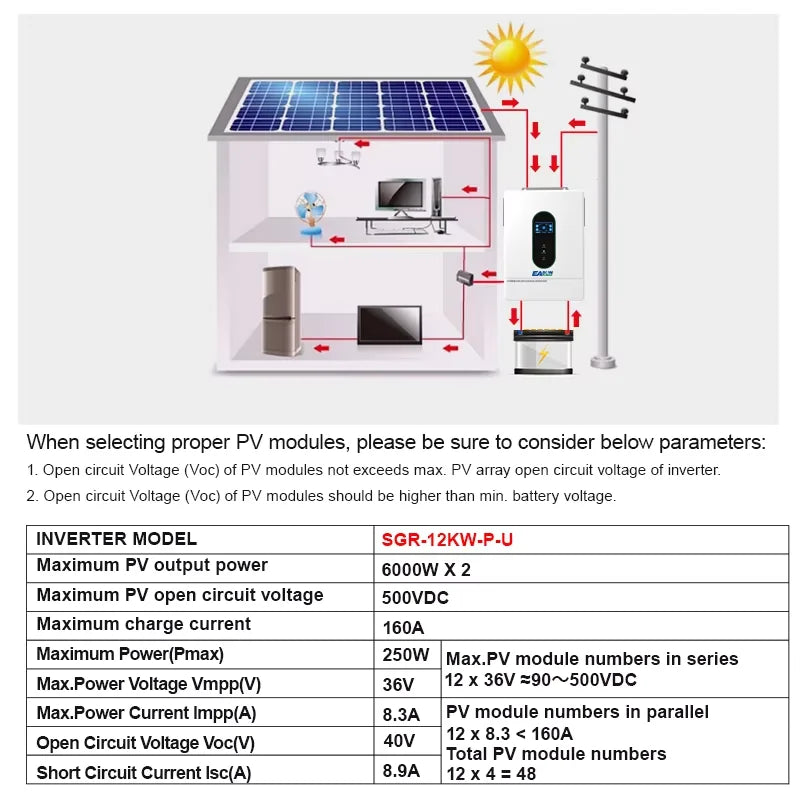

Maximum PV
open circuit
voltage

500Vdc

PV operating
voltage range

90Vdc~485Vdc

MPPT voltage
range

90Vdc~450Vdc

Wiring
protection

Reverse polarity protection

Certified specifications

Humidity
range

5% to 95%（Conformal coating protection）

Noise

≤60dB

Heat
dissipation

Forced air cooling, variable speed of fan

Communicati
on interface

USB/RS485(/WiFi/GPRS)/Dry node control

SMHA-4KW-U currently does not include WIFI. If you need WIFI, you can click on this link to purchase!

https://www.aliexpress.com/item/1005010788115413.html

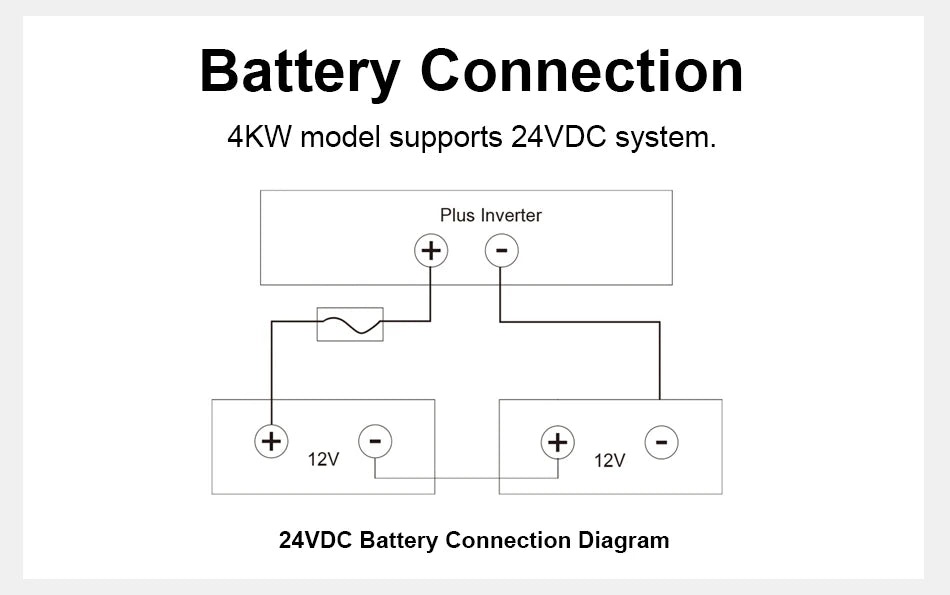

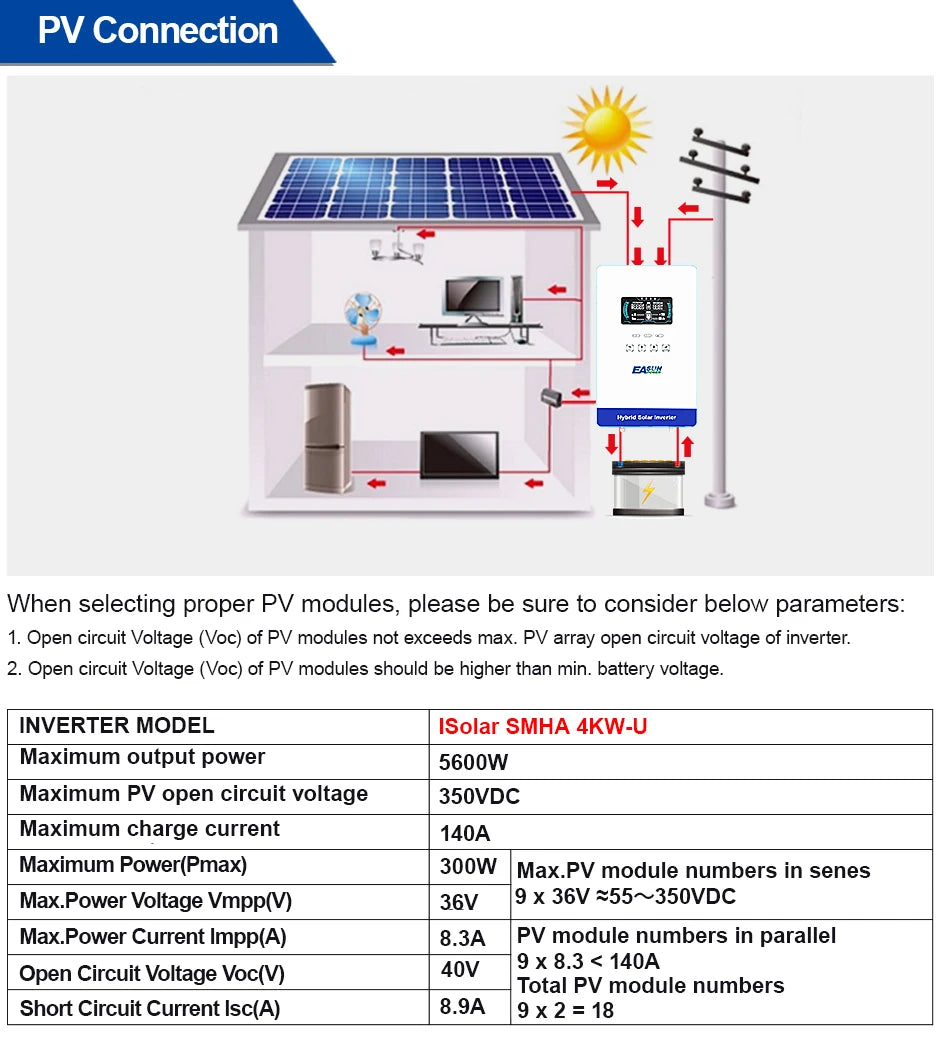

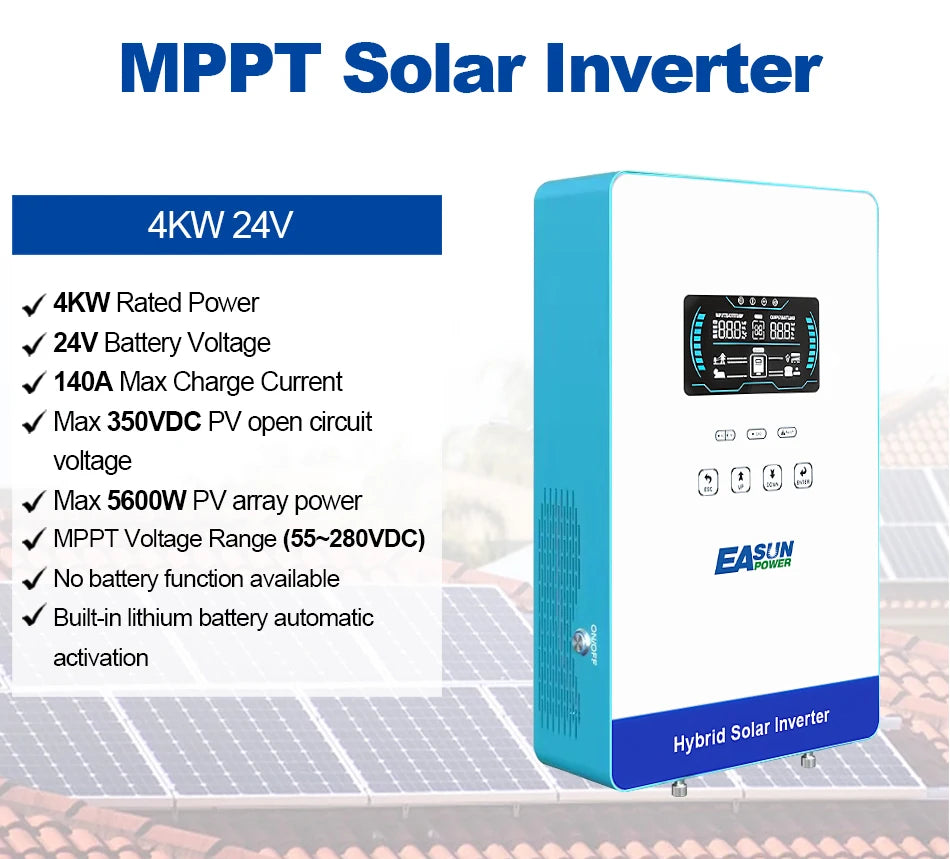

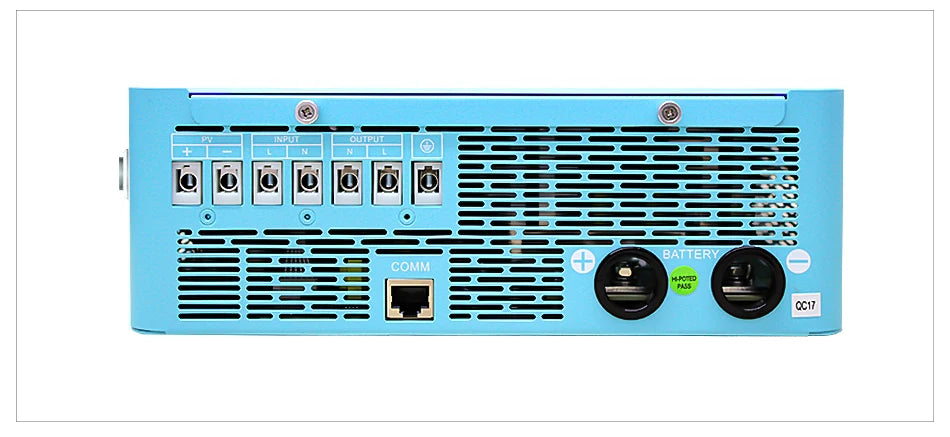

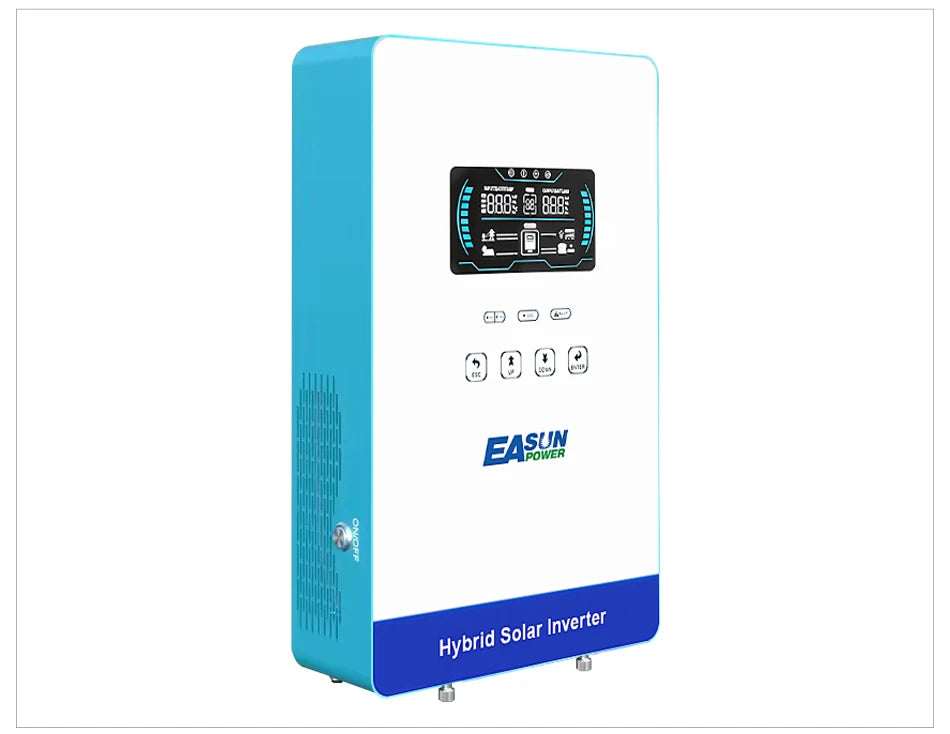

INVERTER MODEL	4.0KW/24V
Rated Power	5600W
PV Charge Current	140A
Efficiency	98.0% max.
Max. PV Array Open Circuit Voltage	350Vdc
PV Array MPPT Voltage Range	55-350Vdc
Standby Power Consumption	2W
Battery Voitage Accuracy	+/-0.3%
PV Voltage Accuracy	+1-2V
Charging Algorithm	3-Step
Safety Certification	CE
Operating Temperature Range	0°C to 55°C
Storage temperature	-15°C~ 60°C
Dimension(DWH)，mm	40025089mm
Net Weight, kg	8.5kg
Rated Output Power	4.0KW/24V
Output Voltage Waveform	Pure Sine Wave
Output Voltage Regulation	120Vac±5%
Output Frequency	60Hz or 50Hz
Peak Efficiency	94%
Overload Protection	5s@>150% load; 10s@110%~150% load
Surge Capacity	2* rated power for 5 seconds
Nominal DC Input Voltage	24Vdc
Cold Start Voltage	23.0Vdc
Low DC Warning Voltage	22.0Vdc
Low DC Warning Return Voltage	23.0Vdc
Low DC Cut-off Voltage	21.0Vdc
High DC Recovery Voltage	29Vdc
High DC Cut-off Voltage	31Vdc
No Load Power Consumption	<35W
Charging Current (ups)@ Nominal Input Voltage	110A
